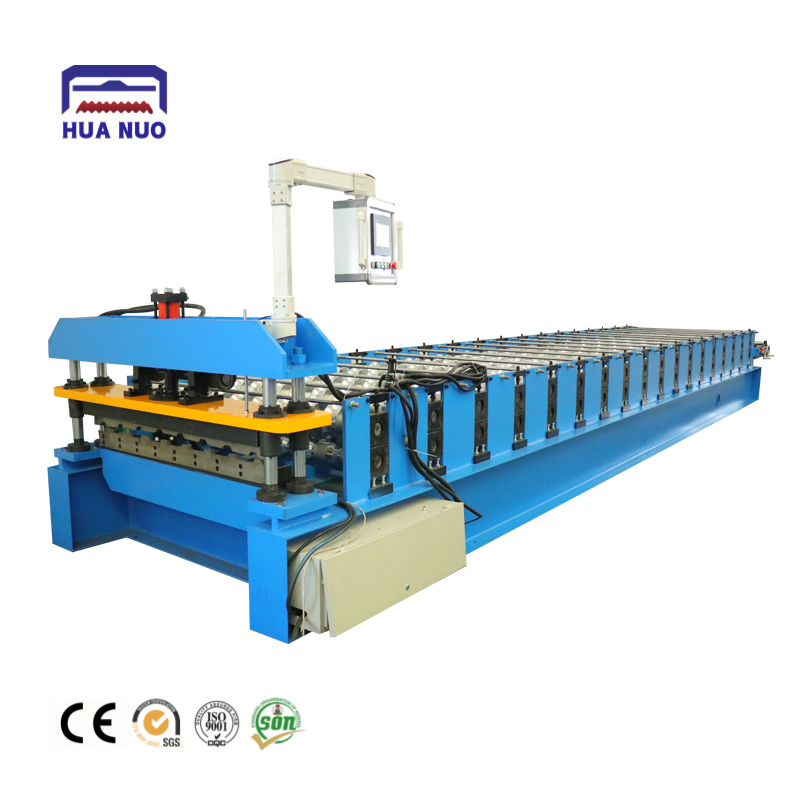

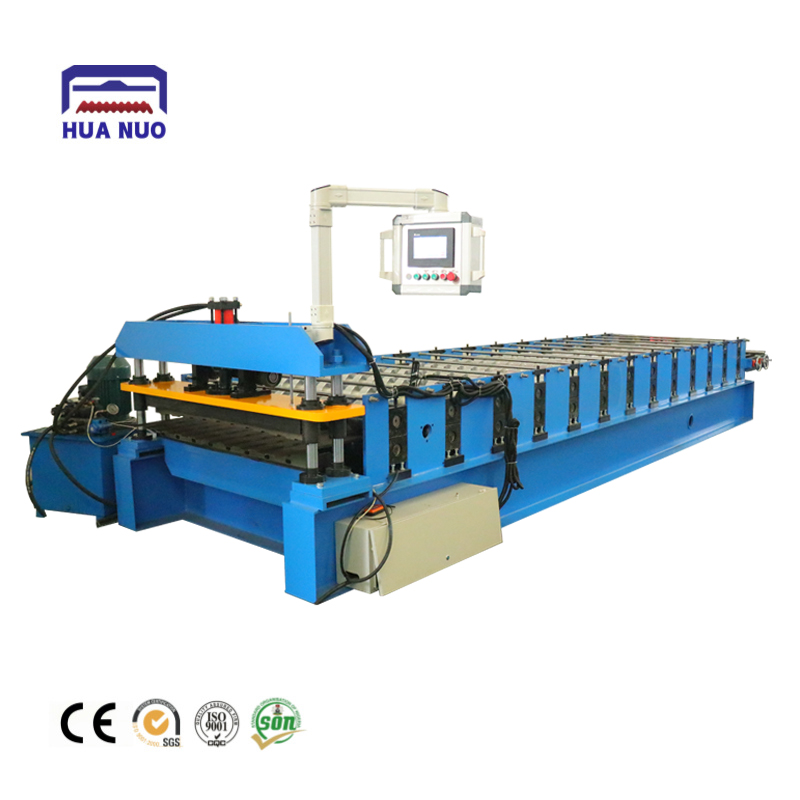

A Roof Sheet Forming Machine , also known as a roofing sheet roll forming machine, is a specialized industrial equipment designed to transform flat metal coils into various types of roof sheets and tiles with specific profiles. This highly efficient machinery plays a crucial role in the construction and manufacturing industries, significantly streamlining the production process of steel materials.
Product version

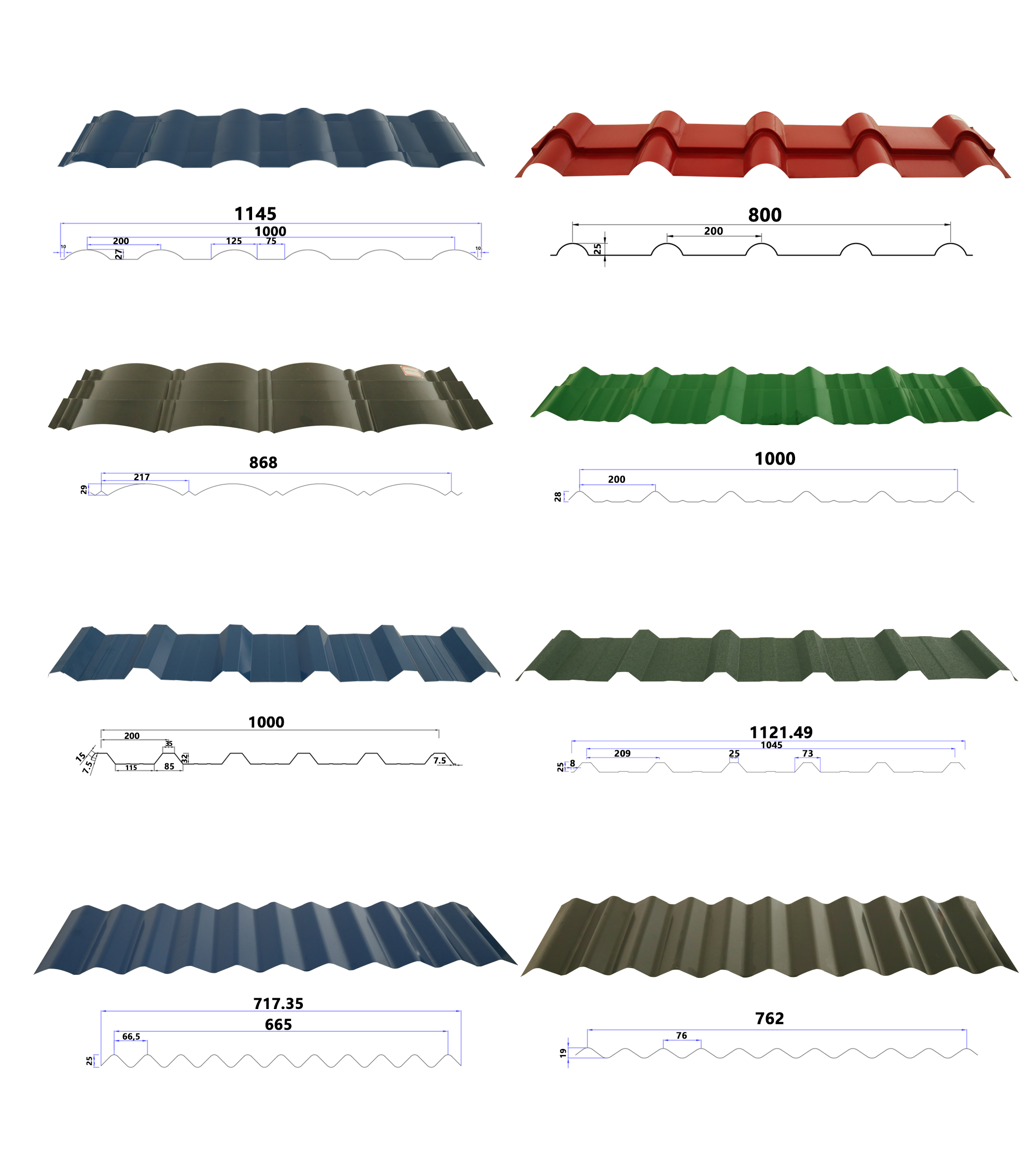

The above pattern diagrams include:

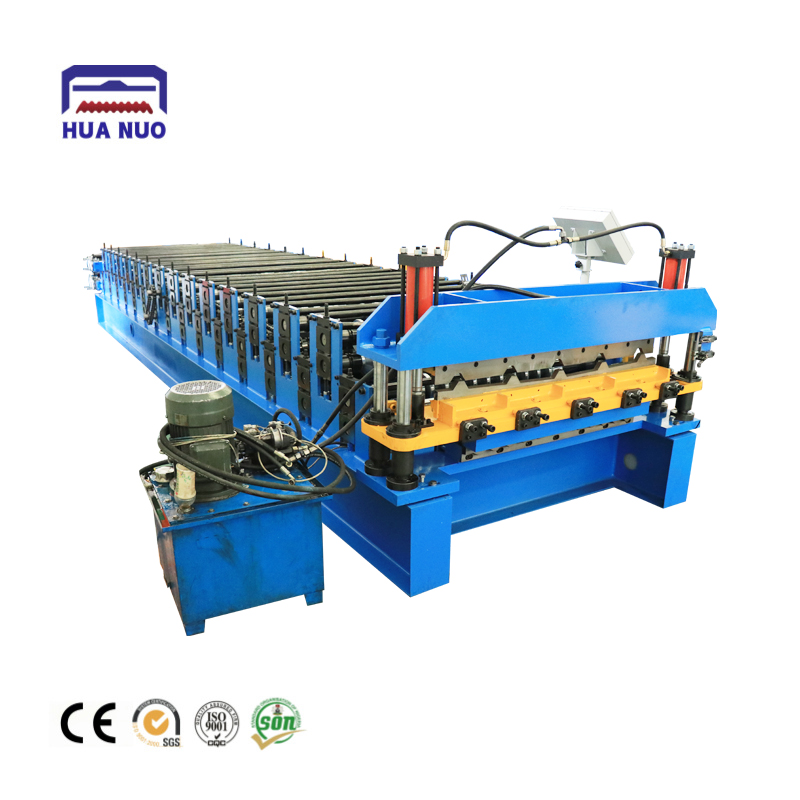

H32-202-1010 GLAZED TILE FORMING MACHINE
1134 ARC-SHAPED ROLL FORMING MACHINE
H24-222-1100 GLAZED TILE FORMING MACHINE
H32 SINGLE LAVER FORMING MACHINE
H27-200-1000 GLAZED TILE FORMING MACHINE
840 SINGLE LAYER FORMING MACHINE

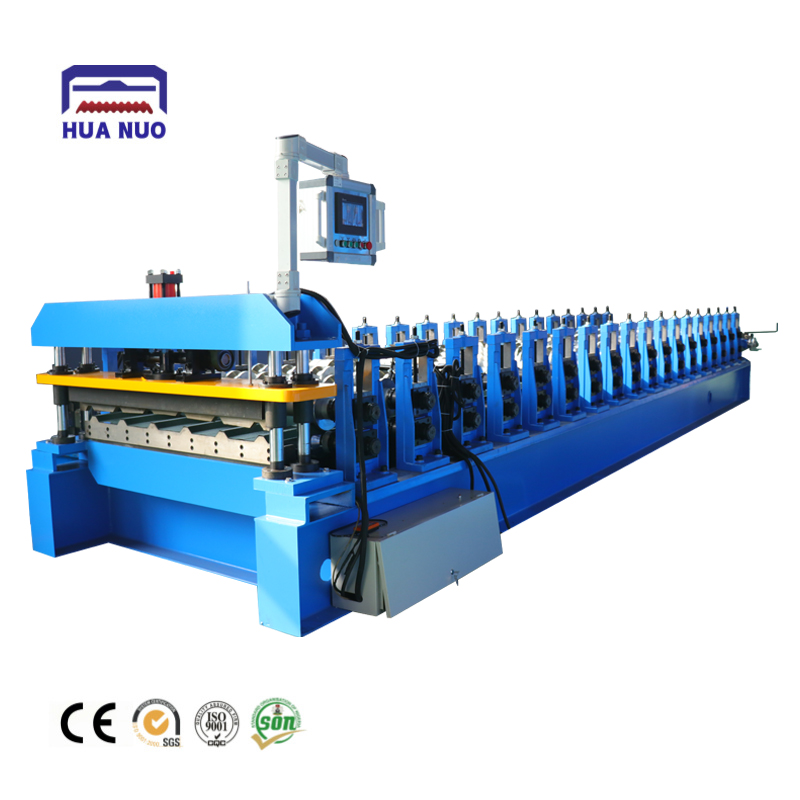

T18-150-1050 ROOF FORMING MACHINE

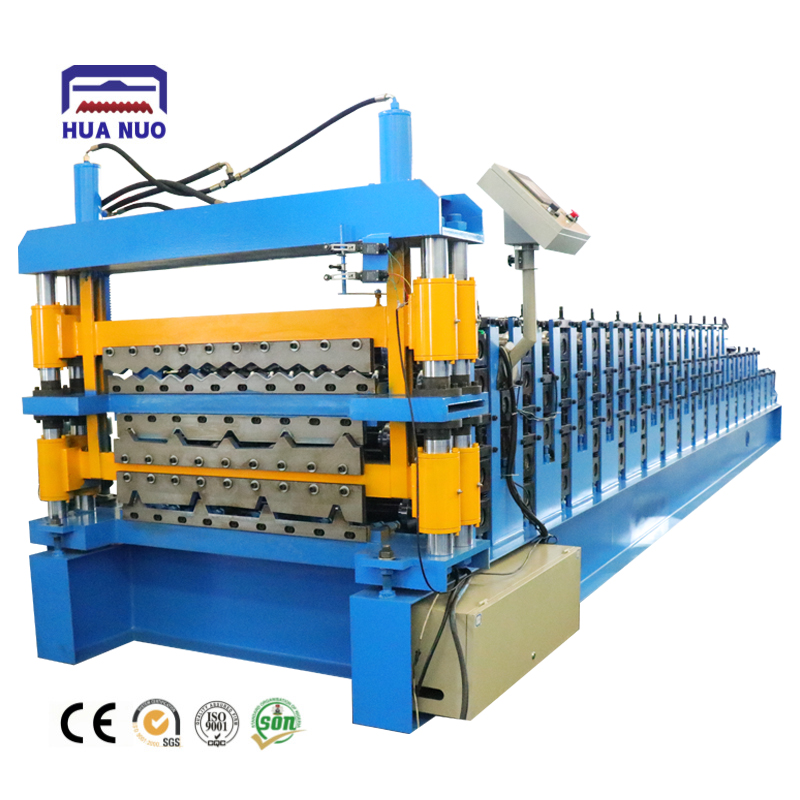

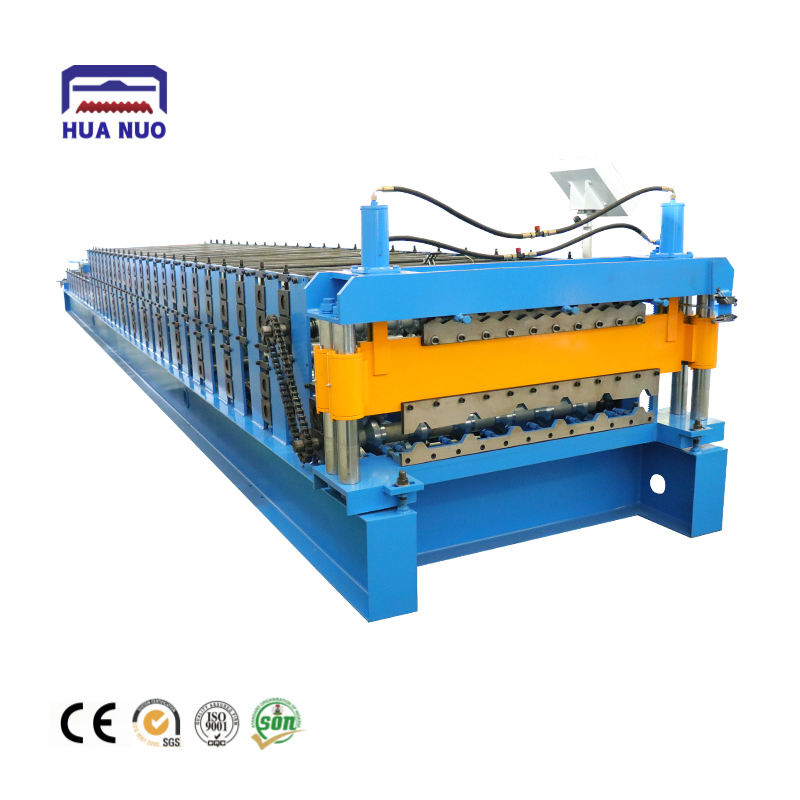

H28-1000-762 DOUBLE LAYER FORMING MACHINE
H45-209-1045 ROOF FORMING MACHINE

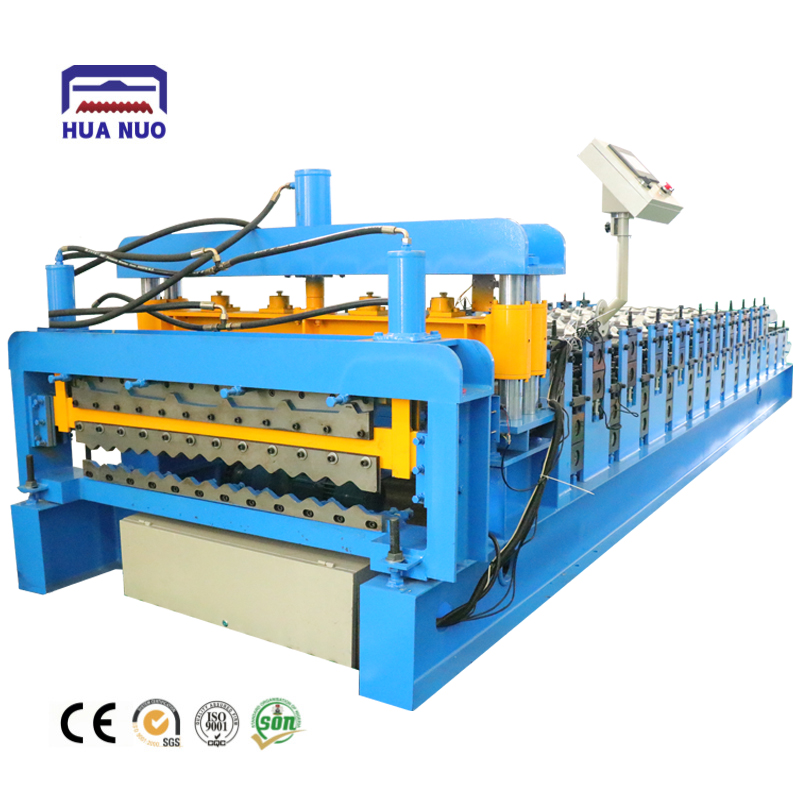

820-810 DOUBLE LAYER ROOF FORMING MACHINE
STANDING SEAM SHEET ROLL FORMING MACHINE

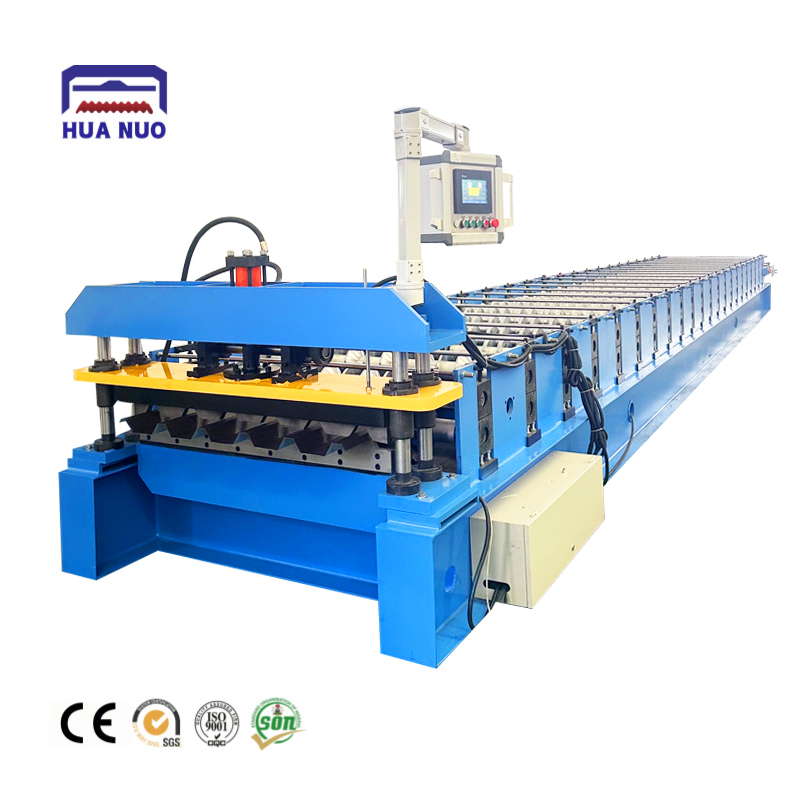

H32-340-1020 ROOF PANEL FORMING MACHINE
5 Ton Manual Uncoiler
1.Maximum capacity: 5 Ton
2.D：510 mm O.D：1500 mm
3.Maximum width: 1300 mm
4.Manual expansion and tighten the coil
5.Structure:Steel plate and Beam Welded
6.supporting and uncoiling the steel strips.
1.Machine base frame adopt 400H beam and 20 mm steel plate welded
2.Roll station: forming stations( subject to the final design)
3.Roller material:Cr12mov steel chrome plated surface with hardness 58-62 degree ,CNC machinery ,
4.Shaft diameter: ￠50mm, 45# steel material
5.All spacers surface are chromed, thickness is0.05 mm
6.Main motor power:5.5KW
7.Transmission: 1.2 inch chain
8.To avoid accidents,all of drive part adopt protect cover
9.Line speed: according to your custormer request
10.To avoid accidents,all of drive part adopt protect cover
1.Cutting type: Hydraulic, connect with the punching hydraulic unit
2.Material of blade:Cr12mov with heat treatment 60-61
3.Length measuring tool : Japan Omron encoder
4.Tolerance of length: 10meters +/- 0.5mm each piece end product
1.Hydraulic power: 5.5KW
2.Working pressure:15-20 Mpa adjustable
3.Hydraulic oil: 46# hydraulic oil
4.Solenoid valve: 1-10 groups
1.Table for reception of the cut profiles: With roller transporter to recieve final product
2.Unloading of the finished products from the table of cut profiles: semi-automatic
3.Frame: Overall frame structure
4.Size: About 3.0m long*0.5mwide*1.0 mhigh
5.One out table with few support roller (base on final design)
6.Supporter roller: Cr12mov material with chrome and smoothing
7.Diameter of rollers: 40-60 mm
8.Color: as your request
9.Quantity: 1-5 units
1.After cutting , the machine will automatic to stop , when the machine get the order , the machine will run automatic
2.Operating system language: English and Chinese.
3.Voltage, frequency, phase: as custormer request , 380V50HZ3P 220v 660HZ3 P
4.Length inaccuracy can be amended easily.
5.Control panel: touch screen(DELTA ) AND control by computer with wifi
6.Unit of length: MM
7.PLC brand: Delta
8.Frequency converter brand: Delta
9.Encoder brand : Janpan Omron encoder
10.Main electric components: China Delixi Brand
1. High production efficiency: High-speed production of corrugated plates, roof panels, etc., facilitating efficient operations and increasing production capacity. The discharge speed is 8-15m /min, suitable for construction scenarios such as steel structures and warehouses, meeting the demands of large-scale production.
2. Stable quality control: The quality of the produced products is stable, with less waste, ensuring the quality of the finished products and the utilization rate of materials.
3. Wide application scenarios: Compatible with steel structures, warehouses, industrial buildings, etc., with a wide range of application scenarios.
4. Good operation experience: Integrating advanced technology, it is easy to operate, lowers the usage threshold, and is convenient for workers to get started.
5. High hardware configuration: The materials used for components such as roller shafts and cutting blades are of high quality (such as 45# steel chrome-plated roller shafts and Cr12 high-grade steel blade blades), with an imported PLC control system. The performance and durability of the equipment are guaranteed. The cutting is done through hydraulic shearing, which is precise and stable.
6. Flexible customization: Colors and other features can be customized according to customer needs to meet diverse appearance requirements.
7. Certification and after-sales guarantee
The equipment has certifications such as CE and ISO, and its quality and compliance are recognized. We offer video factory inspection and a one-year warranty for after-sales service. The core components are guaranteed, making customers feel more at ease when using them and reducing their concerns about later maintenance.
8. Four-column guide and other structures: The four-column guide structure ensures precise and stable shearing and other actions, with high forming accuracy. This makes the produced tile shapes and sheet sizes more standardized and enhances product consistency.
9. Stable transmission: Chain drive is adopted, ensuring smooth and reliable power transmission, guaranteeing the continuous and efficient operation of the equipment, and reducing faults and production interruptions caused by transmission issues.
10. Intelligent control: Equipped with a PLC control system (imported brand), paired with an operation screen, the interface is clear and the operation is convenient, reducing the difficulty of manual operation and facilitating parameter setting and production regulation.
Company Profile

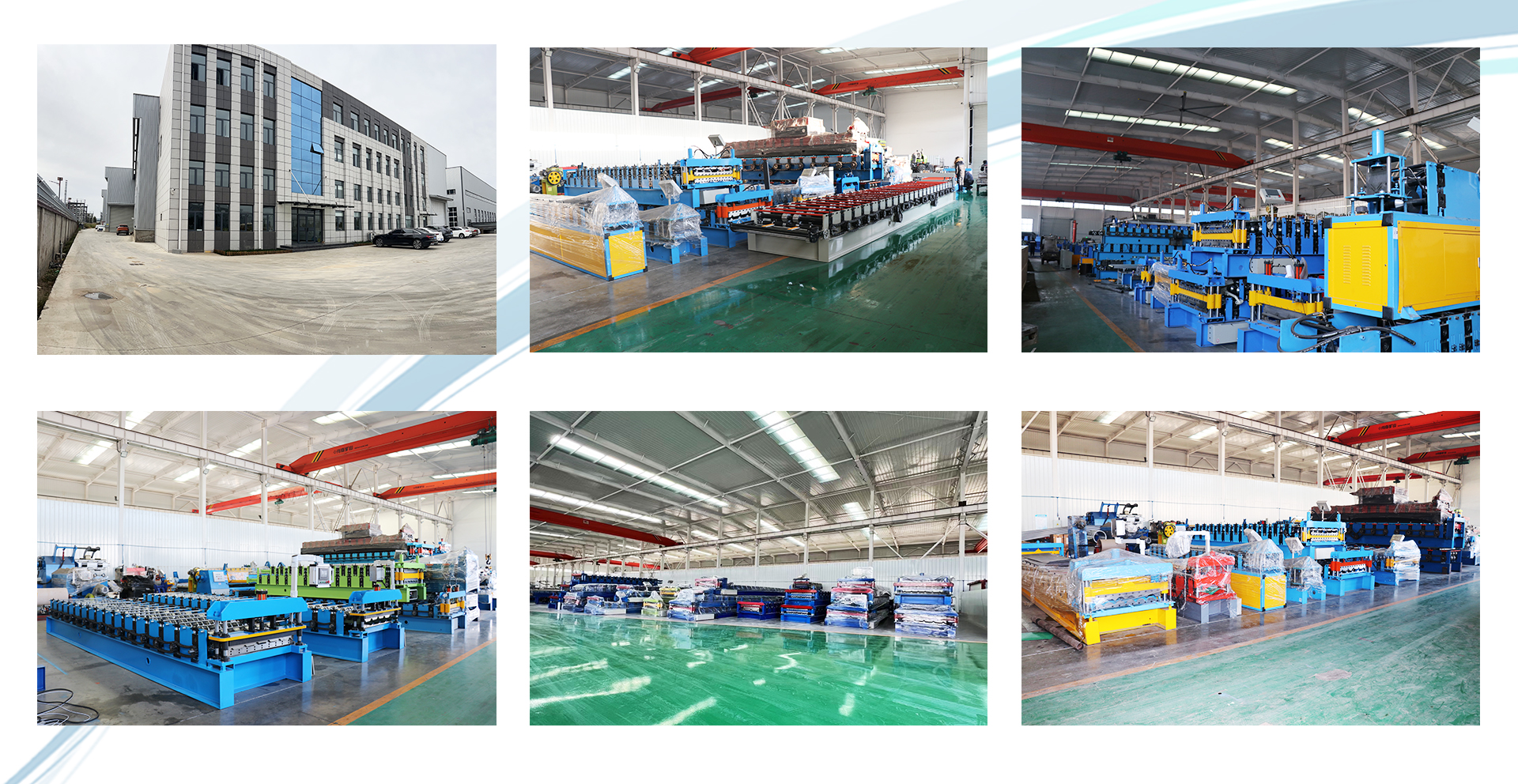

Cangzhou Huanuo Founded in 2006, we specialize in designing and manufacturing high-quality cold-bending equipment. Our 15,000㎡ facility integrates R&D, production, and sales, offering a wide range of machines including forming machines for roofing tiles, C/Z steel, guardrails, light steel villas, and customized solutions.
