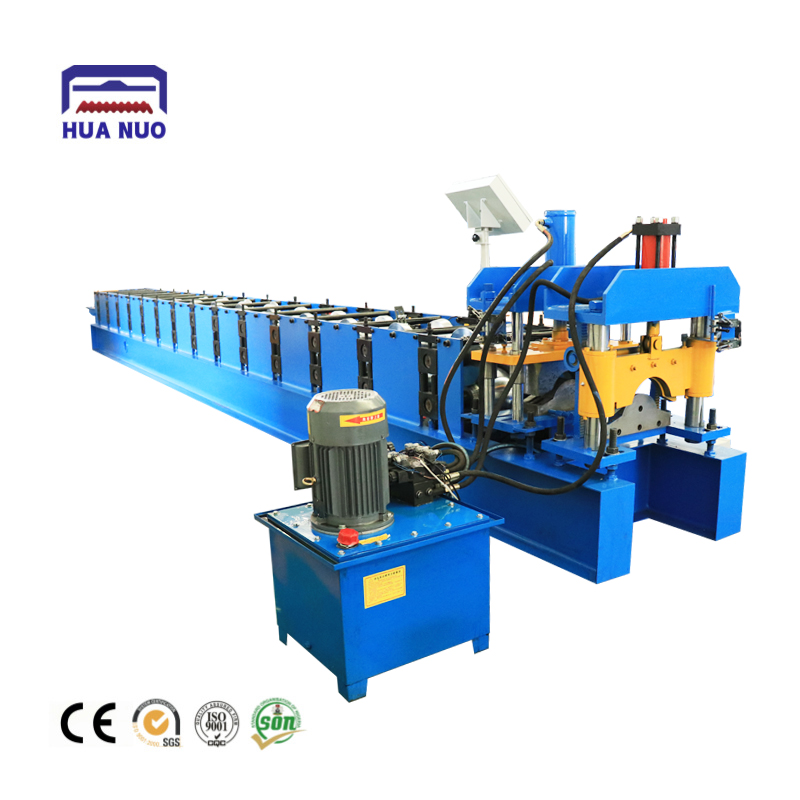

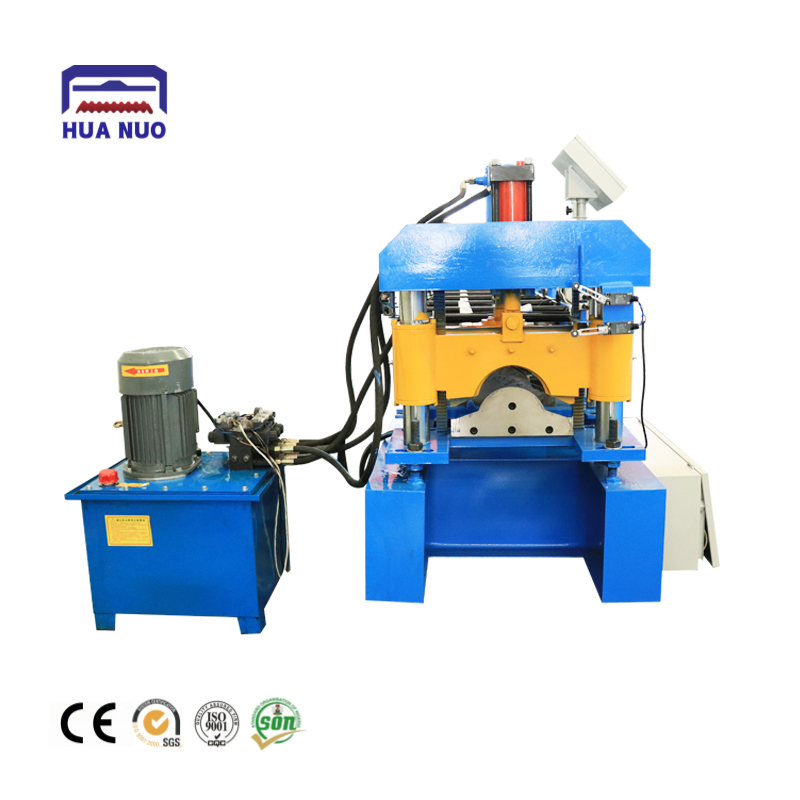

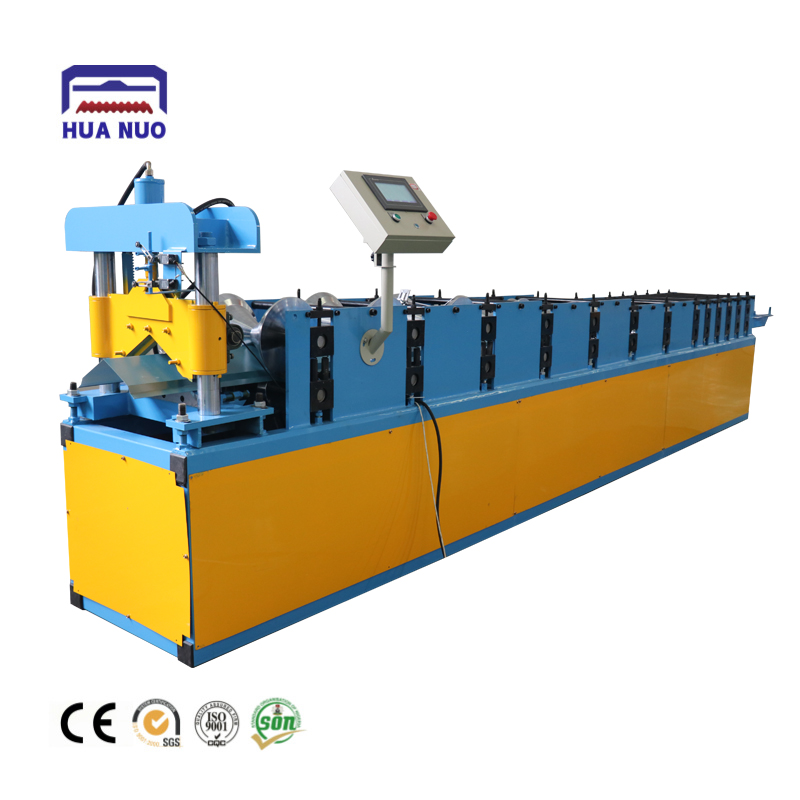

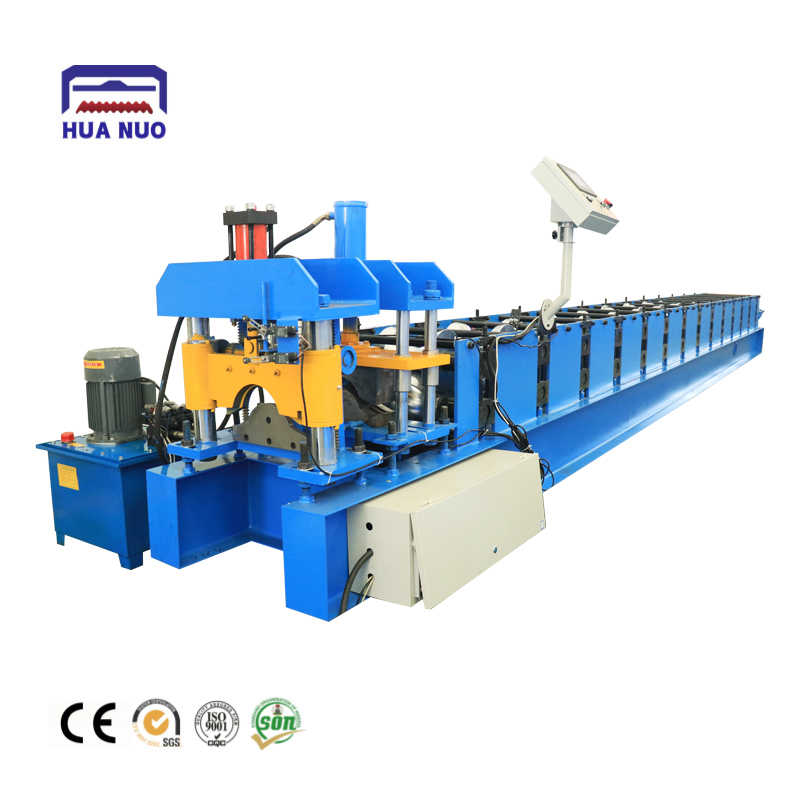

In the construction and roofing industries, ridge cap roof machines play a pivotal role in the production of ridge caps, an essential component for any pitched roof. Ridge caps are used to cover the ridge, the highest point of a roof where two sloping sides meet. They not only enhance the aesthetic appeal of a roof but also provide crucial protection against the elements, such as rain, snow, and wind. A ridge cap roof machine is designed to efficiently and precisely manufacture these ridge caps
Most ridge cap roof machines operate on the principle of roll - forming. This process involves passing a continuous strip of metal, typically galvanized steel, aluminum, or pre - painted metal coils, through a series of rollers. The rollers are arranged in a specific configuration and gradually shape the flat metal strip into the desired ridge cap profile.

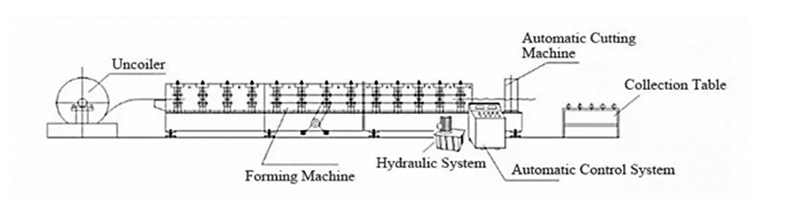

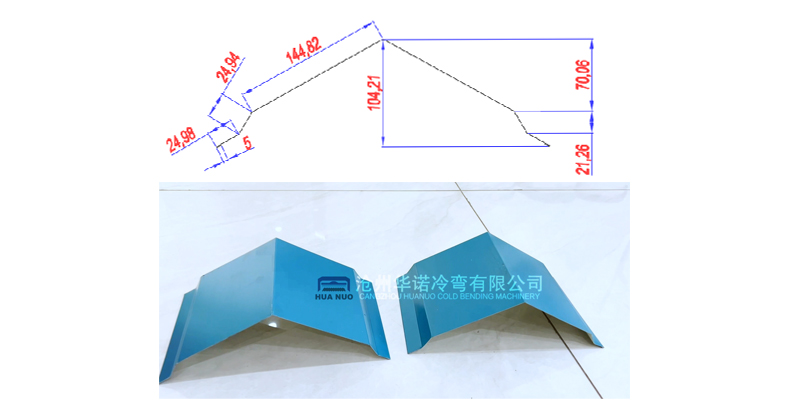

The process begins with the decoiling of the metal coil. The coil is loaded onto a decoiler, which unwinds the strip at a controlled rate. The metal strip then enters the roll - forming section. Here, the rollers, which are carefully designed to match the ridge cap profile, bend and shape the metal in a step - by - step manner. The number of roller passes and the design of each roller are engineered to ensure a smooth and accurate shape. For example, in the production of a standard peaked - style ridge cap, the rollers will gradually form the two sloping sides and the apex of the cap.
After the roll - forming process, the ridge cap reaches the cutting section. A cutting mechanism, which can be either a mechanical shear or a hydraulic cutter, is used to cut the formed ridge cap to the required length. Some advanced machines are equipped with computer - controlled cutting systems that can accurately cut the ridge caps to specific lengths, ensuring consistency in production. This entire process is often automated, allowing for high - volume production with minimal manual intervention.
Standard ridge cap machines are the most common type in the market. They are designed to produce ridge caps in typical sizes and profiles that are widely used in residential and commercial roofing. These machines can handle a range of material thicknesses, usually from 0.4 - 0.8 mm for galvanized steel coils. They are suitable for producing ridge caps with simple, common profiles, such as the basic peaked or angled designs. For instance, in a residential neighborhood, a contractor might use a standard ridge cap machine to quickly produce and install ridge caps for multiple houses. These machines often have a production speed of around 8 - 12 m/min, allowing for efficient production.
Specialty ridge cap machines are tailored to produce ridge caps with unique or complex profiles. This could include ridge caps with decorative elements, such as embossed patterns, or those with specific functional requirements, like extra - thick walls for high - wind or heavy - snow regions. Some specialty machines are capable of producing ridge caps with curved sections, which are useful in architectural designs where a more fluid or non - standard roof shape is desired. For example, in the construction of a luxury villa with an elaborate roof design, a specialty ridge cap machine might be used to create ridge caps that match the unique aesthetic of the building. These machines often require more precise calibration and may have additional features, such as specialized tooling for creating intricate shapes.
Decoiler
The decoiler is the starting point of the ridge cap production process. It holds the metal coil and unwinds it at a controlled speed, ensuring a steady feed of the metal strip into the roll - forming section. Modern decoilers are equipped with features such as adjustable tension control. This is crucial because if the tension is too loose, the metal strip may wrinkle during the roll - forming process, while too much tension can cause the strip to stretch or break. Some decoilers also have automatic coil - loading systems, which are particularly useful in high - volume production facilities. These systems can quickly and safely change coils, reducing downtime during production. For example, in a large - scale roofing manufacturing plant, an automatic coil - loading decoiler can significantly increase productivity by minimizing the time spent on manual coil changes.

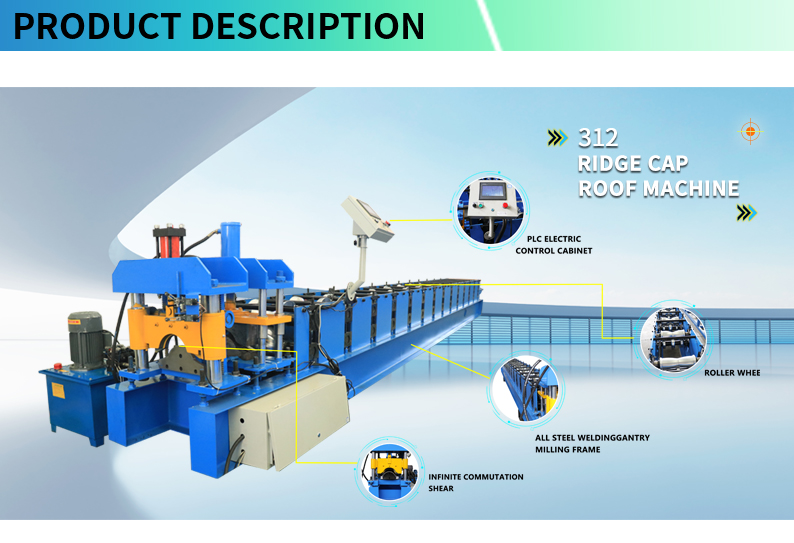

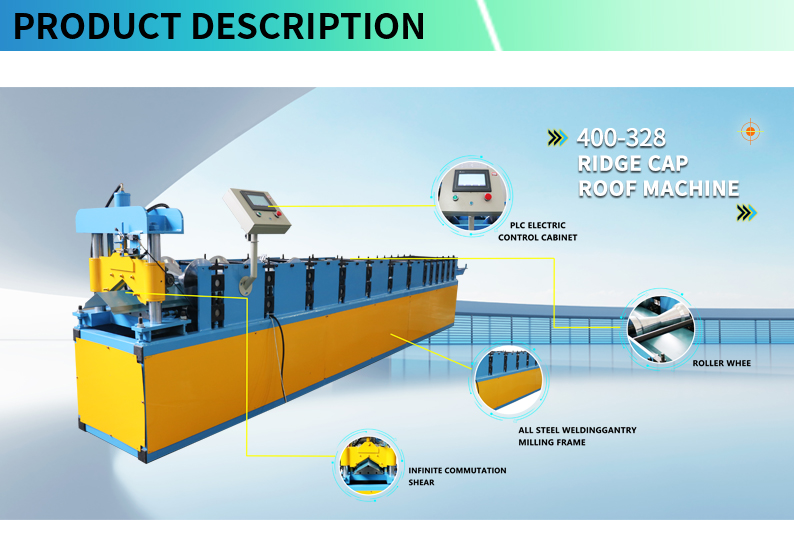

The roll - forming system is the heart of the ridge cap roof machine. It consists of a series of rollers that are precisely designed and arranged to shape the metal strip into the desired ridge cap profile. The rollers are typically made of high - quality materials, such as hardened steel or alloy steel, to withstand the forces exerted during the roll - forming process. They are often precision - ground and chrome - plated to ensure a smooth surface finish on the ridge cap. The design of the roll - forming system is highly customized based on the specific ridge cap profile. For instance, if the ridge cap has a complex shape with multiple bends and curves, the roll - forming system will have a corresponding number of rollers and a unique roller arrangement to achieve that shape. The accuracy of the roll - forming system is essential, as any deviation in the roller alignment or shape can result in inconsistent or defective ridge caps.

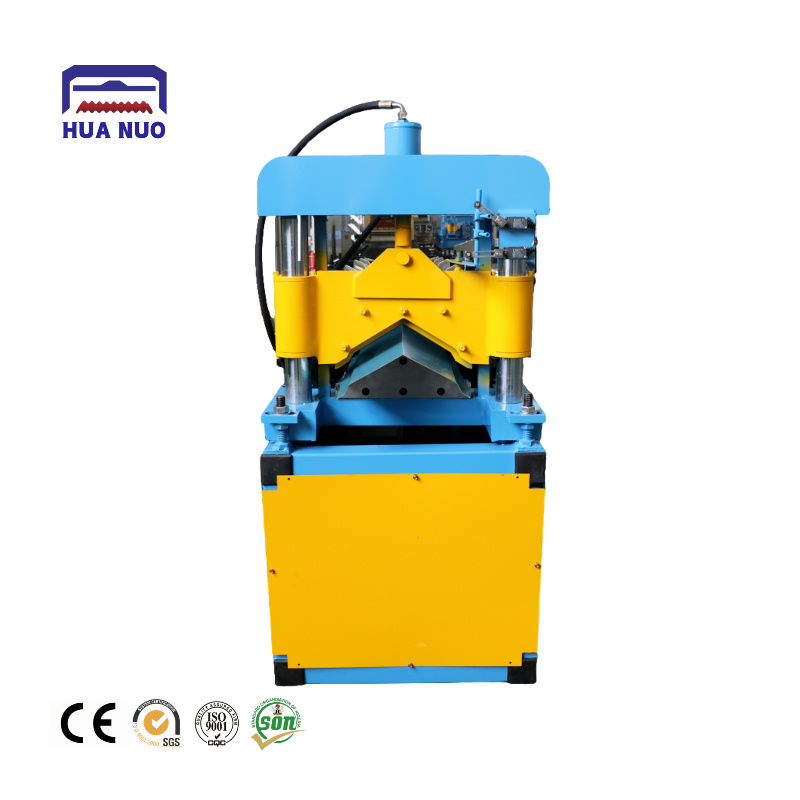

The cutting mechanism is responsible for cutting the formed ridge caps to the correct length. There are two main types of cutting mechanisms used in ridge cap roof machines: mechanical shears and hydraulic cutters. Mechanical shears use a set of blades that are driven by a mechanical linkage to cut through the metal. They are relatively simple in design and are suitable for cutting thinner materials. However, they may require more frequent maintenance to keep the blades sharp. Hydraulic cutters, on the other hand, use hydraulic pressure to power the cutting blades. They are capable of making cleaner and more precise cuts, especially when working with thicker materials. Some advanced cutting mechanisms are computer - controlled, allowing for accurate length cuts and the ability to program different cutting lengths for batch production. For example, a contractor who needs to produce ridge caps of varying lengths for a complex roofing project can use a computer - controlled cutting mechanism to easily set and change the cutting lengths as required.
The control system of a ridge cap roof machine is what enables the operator to control the various functions of the machine. It can range from a basic manual control panel to a sophisticated computer - numerical - control (CNC) system. A basic control panel typically has switches and dials to control the speed of the machine, the operation of the decoiler, and the cutting length. In contrast, a CNC system offers much more advanced features. With a CNC system, the operator can input specific parameters, such as the ridge cap profile, length, and production quantity. The machine will then automatically adjust the roll - forming and cutting processes accordingly. This not only increases the accuracy of the production but also allows for greater flexibility in producing different types of ridge caps. Additionally, some CNC systems are equipped with diagnostic tools that can detect and report any issues with the machine, helping to reduce downtime and improve overall efficiency.

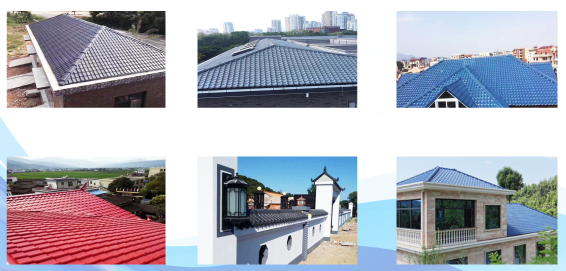

In residential construction, ridge cap roof machines are widely used to produce ridge caps for houses, townhouses, and other single - family or multi - family dwellings. A well - made ridge cap is essential for protecting the roof ridge from water infiltration, which can lead to leaks and damage to the interior of the house. A ridge cap roof machine allows contractors to produce ridge caps on - site or in a local manufacturing facility, which can be customized to fit the specific design and style of each home. For example, in a new housing development, a contractor may use a ridge cap roof machine to produce ridge caps that match the architectural theme of the neighborhood, whether it's a traditional, modern, or rustic style. The ability to produce ridge caps in - house also reduces the cost associated with purchasing pre - fabricated ridge caps and transporting them to the job site.
Commercial buildings, such as office buildings, shopping malls, and industrial facilities, also require high - quality ridge caps to protect their large - scale roof structures. Ridge cap roof machines are used to produce ridge caps that can withstand the harsher environmental conditions and heavier loads often associated with commercial buildings. These ridge caps may need to be larger in size and more robust in construction compared to those used in residential applications. For instance, in a large shopping mall with a vast roof area, the ridge caps need to be able to handle significant amounts of rainwater runoff and strong winds. A ridge cap roof machine can produce these large - sized and durable ridge caps efficiently, ensuring the long - term integrity of the roof. In addition, for commercial buildings with unique architectural designs, specialty ridge cap machines can be used to create ridge caps that meet the specific aesthetic and functional requirements.
